Your Most Economical & Reliable Solution for Drill Pipe EMI Testing
Drill Pipe EMI unit – Horus 5003

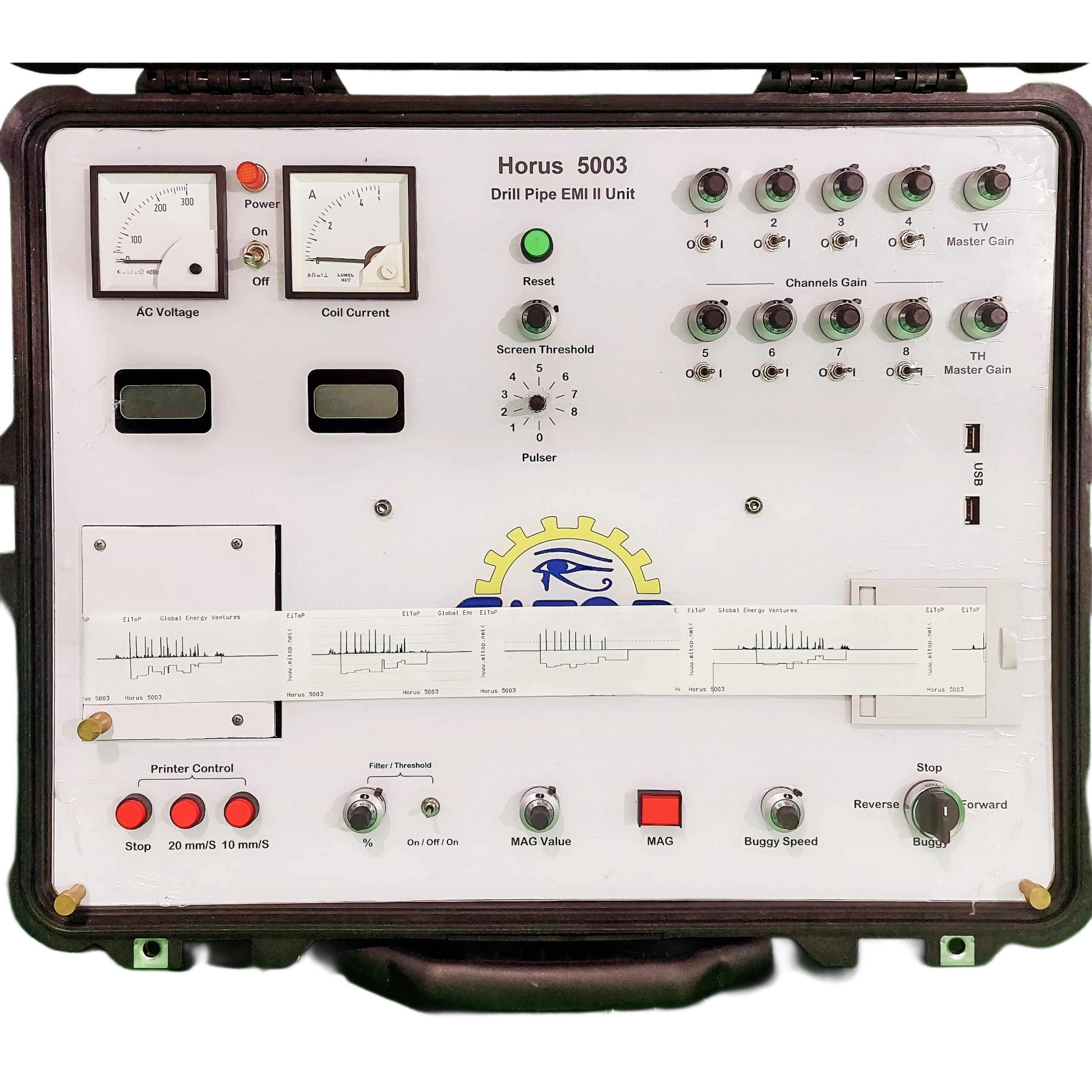

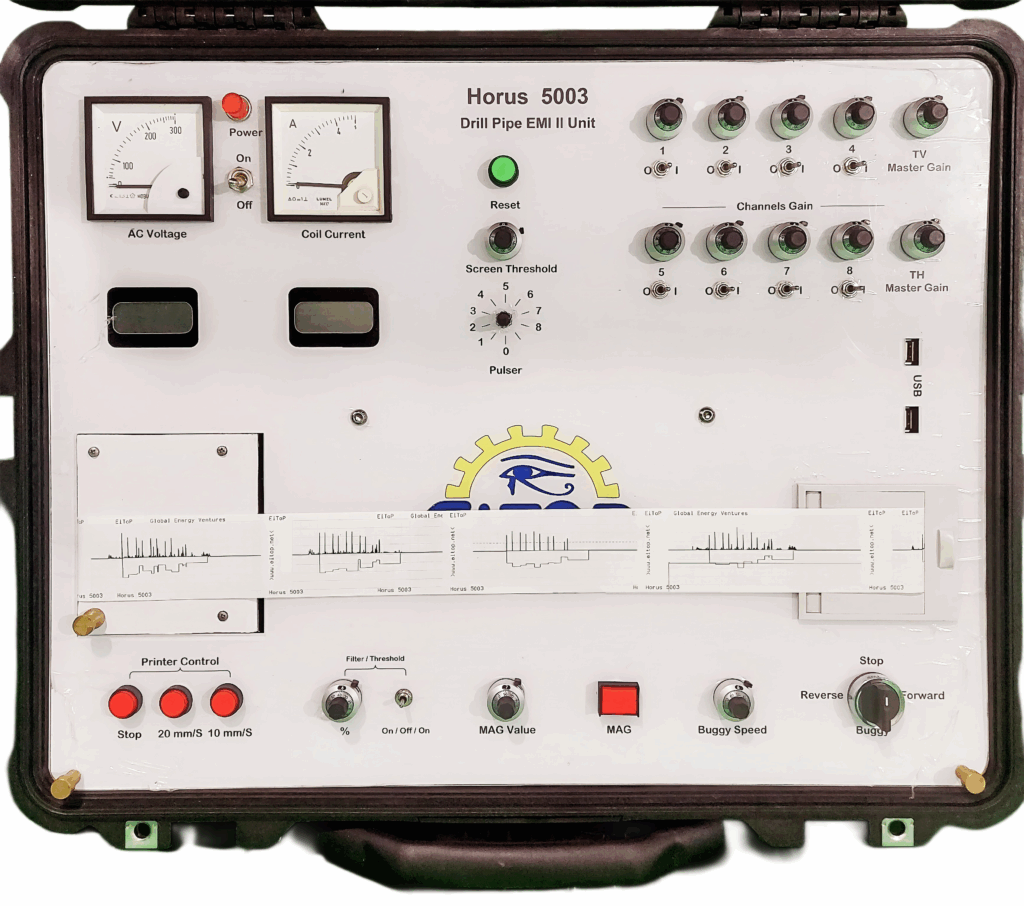

EiToP HORUS 5003 DP EMI II Unit
Product Overview:
The HORUS 5003 is EiToP’s latest innovation in digital DP EMI units, delivering advanced, reliable solutions for drill pipe inspection. Featuring state-of-the-art DP scan technology, this compact and portable unit ensures high accuracy, durability, and user-friendly operation, making it ideal for comprehensive inspection needs.
Product Specifications:
- Transverse (TV) Flaw Detection System: Advanced detection for reliable flaw identification.
- Wall Thickness Monitoring: Full coverage for detecting localised wall loss, such as erosion and pitting.

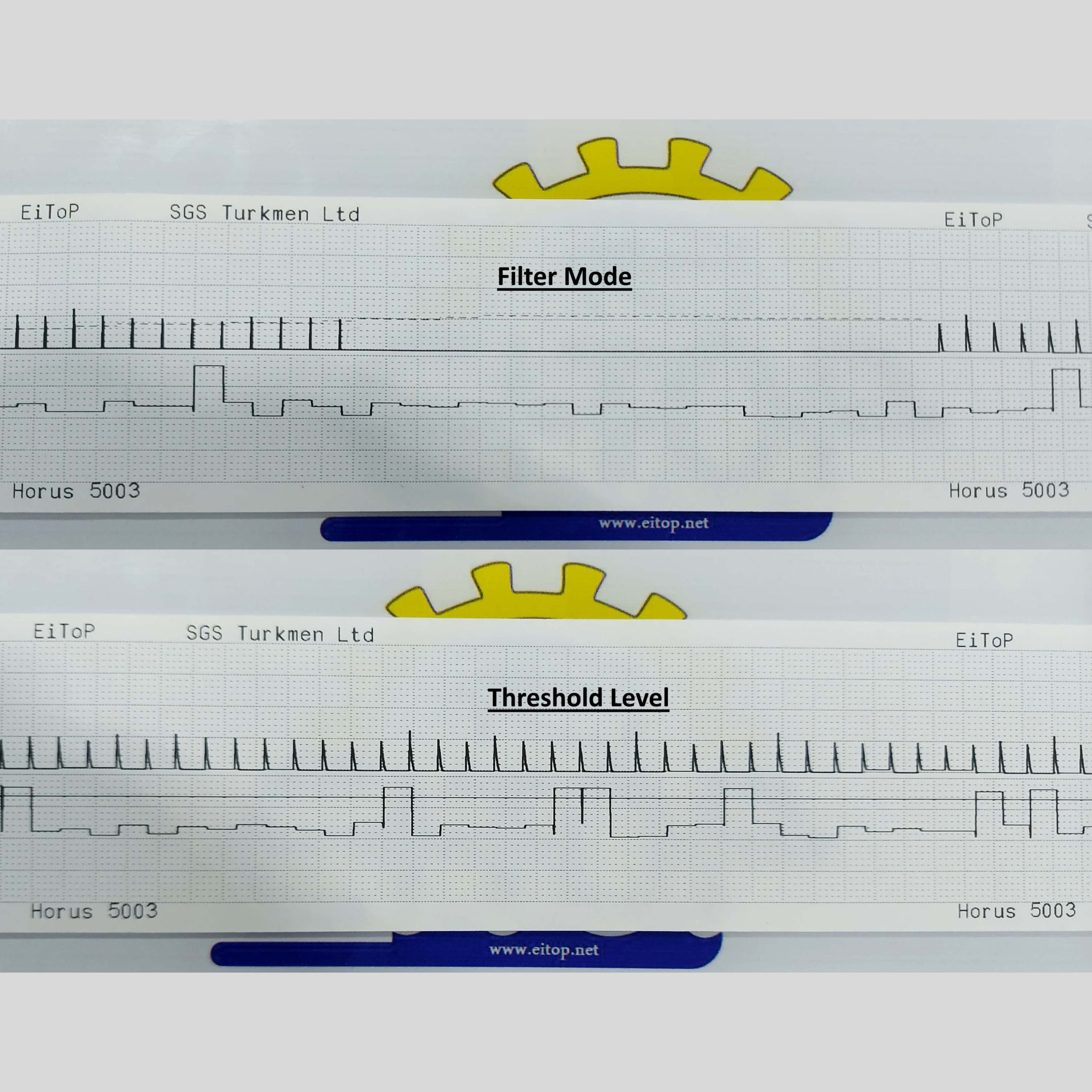

- Dual Thermal Chart Recorder: Captures transverse and wall thickness data with dual-speed functionality and dual paper rolling mechanism for reliable, continuous tracking.

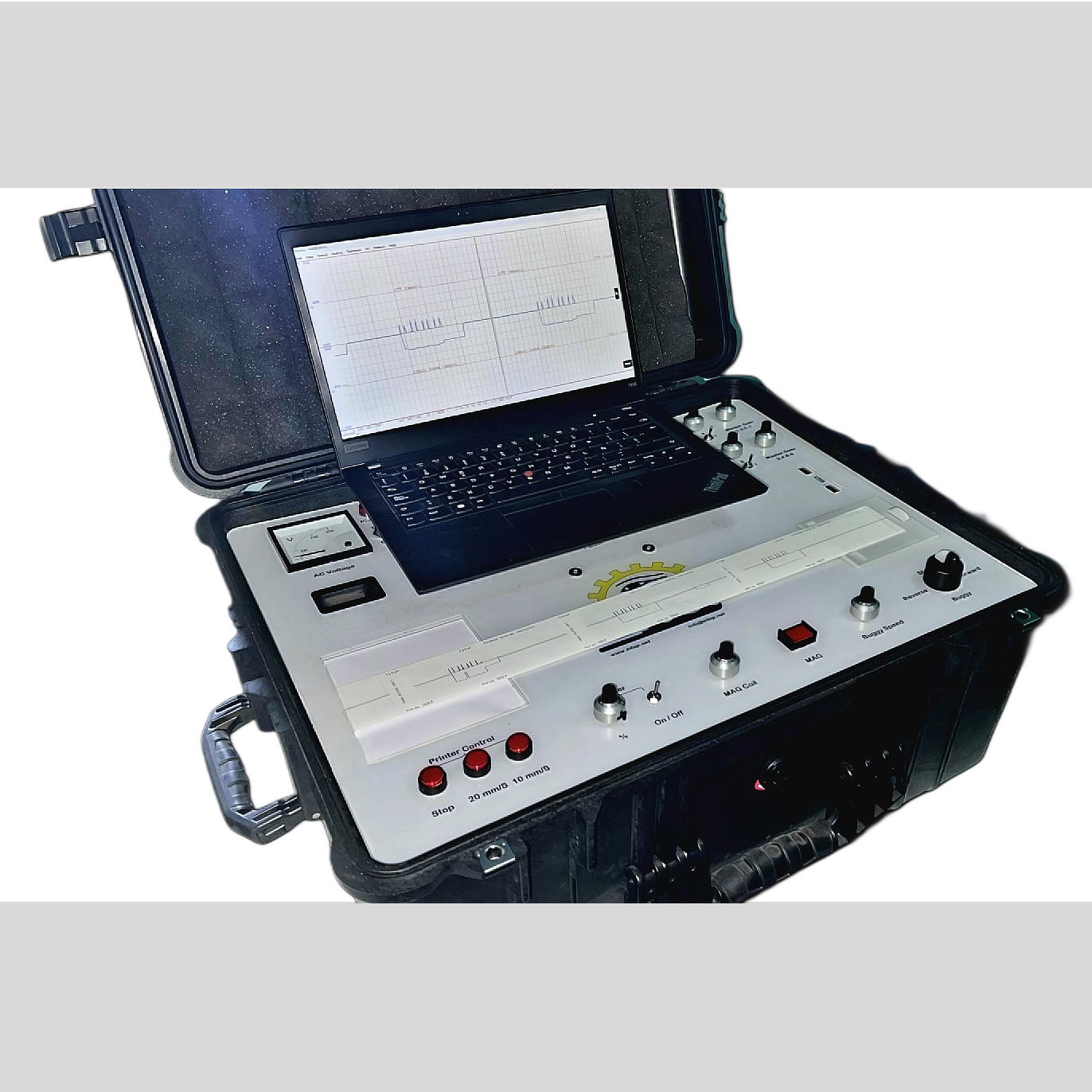

- Integrated Data Acquisition: Equipped with dual USB ports for seamless PC connectivity and digital data recording.
- Pipe Size Range: Inspects pipes from 2 3/8″ to 6 5/8″.
- Buggy Speed Control: Adjustable speed for enhanced inspection efficiency.
- Easy Calibration & Testing: Built-in pulser system for each shoe, facilitating smooth standardisation.
- Single Fixed Motherboard: Ensures streamlined and reliable performance.
- Premium Components: Constructed with original USA/UK parts for unmatched quality.
- Rugged, Lightweight Design: Meets DS-1 and API quality standards and is housed in a durable, shock-resistant fibre case for easy transport.
Package Includes:
- HORUS 5003 DP EMI Unit.
- Cable Set, Laptop & Transformer
- Dual Drive Buggy (compatible up to 6-5/8”)
- DP Coils (customised per size requirements)
- Air Jack Set with rails and hoses
- Buggy Heads and Test Pipes (sized from 2-3/8″ to 6-5/8″ as per selection)
Delivery & Warranty:
- Delivery: 30–60 Days
- Warranty: 24 Months
- After-Sales Services: Full support with calibration and technical assistance for ongoing reliability.
